Water pump

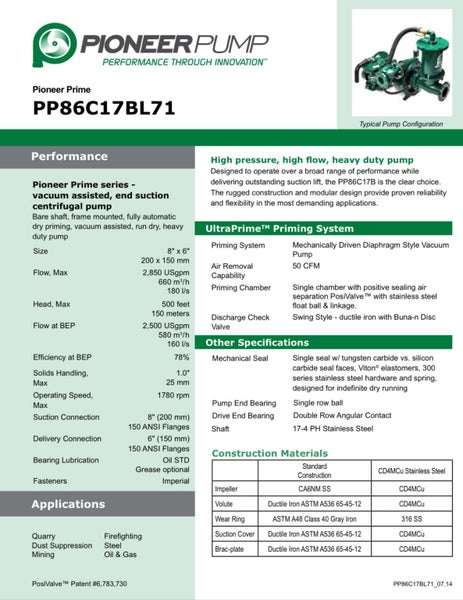

Pioneer Prime series - vacuum assisted, end suction centrifugal pump Model - PP86C17 Engine - Volvo TAD541 1321 hr Description of Pump Package being offered: Pump wetted parts including - suction spool, priming chamber, volute, back cover, wear rings and non-return valve all in Ductile Iron. Other internal parts CA6-NM Stainless Steel Impeller /17-4PH Stainless Steel Shaft. Run Dry Mechanical Seal with External Oil Reservoir. Grease Lubricated Bearing Housing. 6” Valmatic Discharge NR Valve. SAE 3 Housing with a 11inch Flywheel Coupling. Solids handling Impeller Capable of Handling 3” Solids. Coupled directly to a Diesel engine Model TAD541 Manufactured by, Volvo Supplied complete with an engine protection Panel model K27 automatic operation, manufactured by Kensho. Pump and engine are mounted on a sub frame which will be isolation mounted onto the main Fuel tank skid. The fuel tank is Integral 600L Bunded Fuel tank has 5mm plate top & bottom. Forklift Tyne Pockets The panel & E Stop are mounted on an easy to get to panel stand. The batteries are in vented box. Unit is built with Central Lifting frame, a roof over the engine & Pioneer Laser Cut Hot side guard. Auto Prime Pump Package's will include Pump / Engine / Vacuum & pressure gauges/ Panel Stand/ Large mushroom e stop / cables / Battery & starter motor isolators/ flashing yellow operational beacon/ Fire Extinguisher / High Vis stickers / Operating range plate/ Unit info and weight plate /geared butterfly discharge valve/ 1 hard copy O&M
