Description

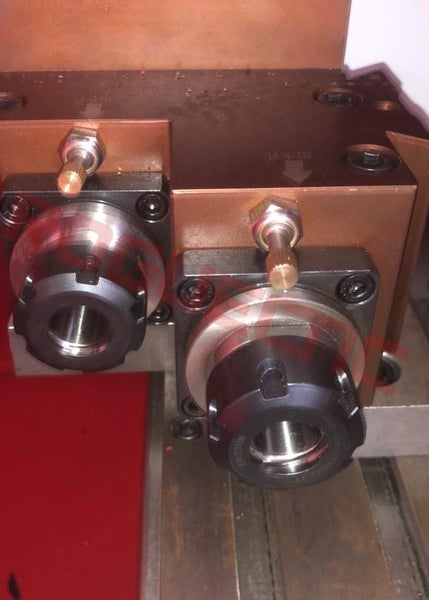

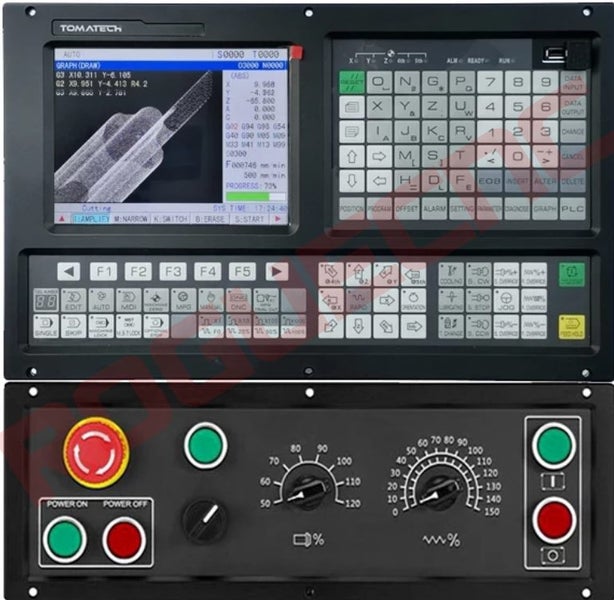

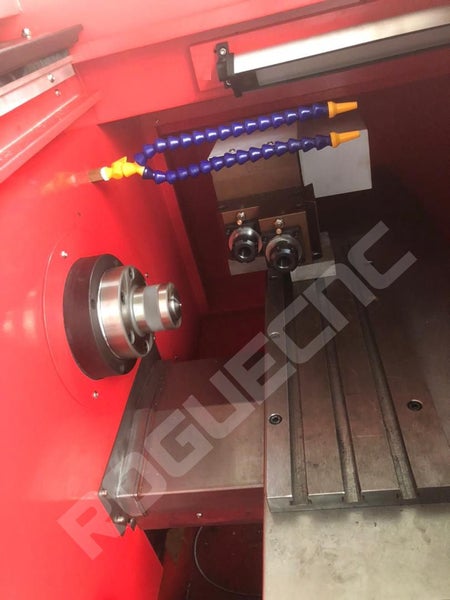

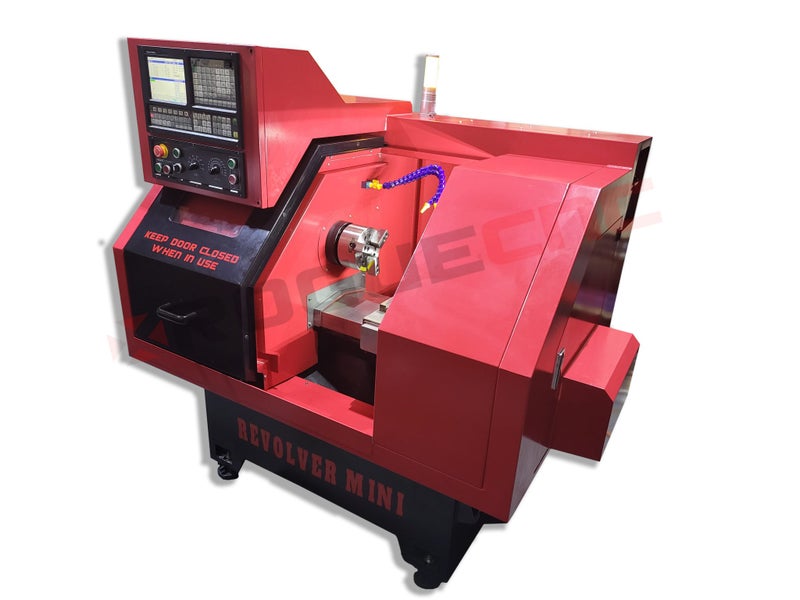

Innovate your ideas, prove your game changing concepts, start your own production line with the Rogue Revolver Horizontal Turning Centre with live tooling! ?Cut plastics, bronze, copper, stainless, steel, Aluminium and more. Small foot print for home workshop / hobby use. Has many features of a large industrial machine, making growing into a bigger machine easy. Hardware motion controller. 5c Pneumatic Collet closer 6" 3 jaw chuck Flooded coolant. Gang Tooling Pendant. Single phase power plug for convenience. Highest feed rate/rapid rate of its class, for fast cut times. 2x the cutting power of competing products. ?The Revolver Premium Package includes the flood coolant enclosure, Pneumatic 5c collet closer, Gang tooling, Tomatech TAC2000 hardware motion controller, G2 Drive amplifiers, automatic lubrication system, not to mention this is the first small form factor lathe to offer a live tooling option. ?Optional accessories include: Hydraulic chuck LIVE TOOLING!! 3.7kw spindle (3ph only) 4 position tool changer Live tool in action: https://youtu.be/vv0oxhf3Gc8 230v 50hz 20amp, straight out of the wall in the shed power* Small form factor 1650x1100x1550mm Cuts almost anything (steel, plastic, aluminium, stainless, brass, bronze etc) Powerful AC Servo Axis Motors (XZ 1200w,) 2.2kw AC Servo Spindle 3000RPM Spindle Swing over bed 280mm Swing over carriage 120mm X Axis Bed length: 500mm X axis travel 380mm Z Axis travel 180mm A2-5 Spindle Nose 46mm max bar size 6000mm/min cutting 12000mm/min Rapids Gang Tooling Rigid tapping Flood coolant 700kgs Live Tool Spec's Both single and duel station available ER25 collet 2500rpm max Full C axis interpolation 12 month RTB warranty Most spare parts in stock ready for immediate dispatch should you run into trouble Finance available For more details visit: https://www.roguecnc.com/rogue-revolver-lathe keywords, lathe, cnc machine, turning, CNC turning, tormach, 5c collet
