Description

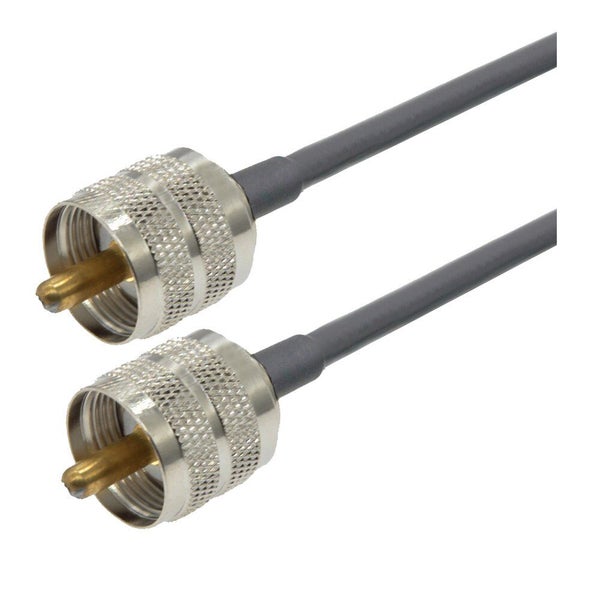

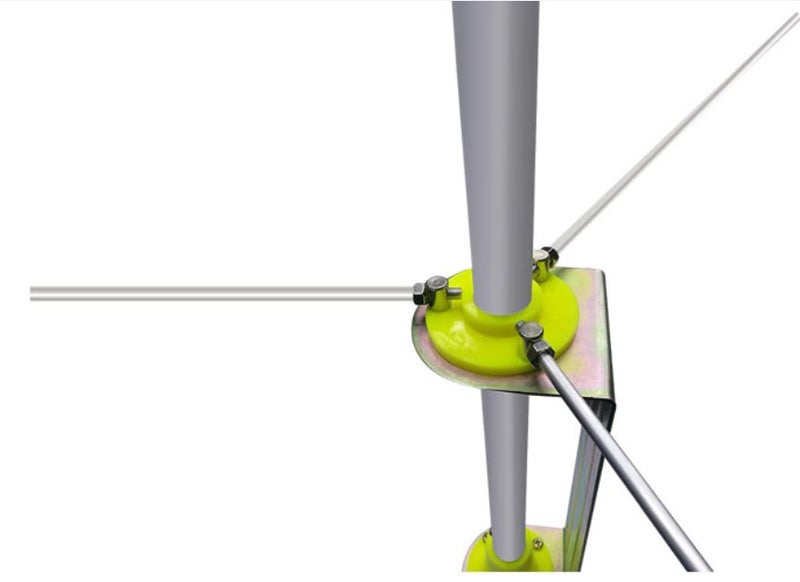

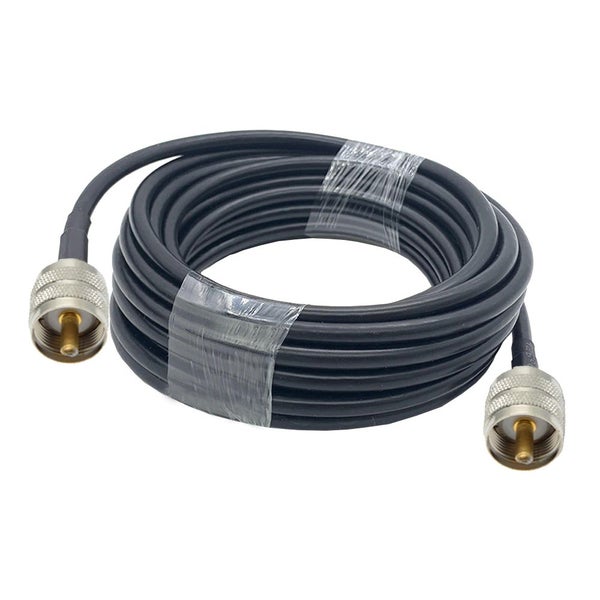

** NEW FROM TECHOMAN ** Premium Quality and 100% Brand New ! DO YOU WANT TO MAXIMIZE YOUR TRANSMIT POWER AND RECEIVE SENSITIVITY WITH OUR HIGH GAIN OMNIDIRECTIONAL BASE STATION ANTENNA FOR EXTENDED RANGE.? Perfect omnidirectional base station antenna for the avid 26 / 27MHz CB band radio user with 5.5dBi gain ! That means for 5 watts input you radiate 17.75 watts eirp. Also improves signals received. Complete Aluminium Base Station Antenna with Mounting Hardware. Comes with all the mounting gear for the ideal base station antenna to fit up to a 41mm water pipe. Kit includes: ---------------- * Tuned for maximum gain at 26 to 28 MHz * U bolts for up to 41mm (1.5") size pipe * 15 Metres of RG-58 Cable with PL259'a at both ends Specifications: ----------------- * Frequency range: 26 to 28 MHz (no tuning required) * Type: Omnidirectional * Gain: 5.5dBi * Connector: SO239 * Length: 6.1 metres * Max.power rating: 150W * Impedance: 50 ohms * Radiating Elements: Aluminium Alloy * VSWR: Less than 1.5:1 * Mast diameter accepted: 41mm (1.5") * 3 radials, each 88cm (880mm) long * Yellow insulators are UV stabilized * Can be wall or wooden post bolt mounted Package: ----------- 1 x TM-CB2627A Base Station Radio Antenna as pictured plus 15 metre coaxial cable. ** Cable available as extra from Techoman Omnidirectional HF CB Radio Professional Quality Antenna Aerial with High Gain ** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
